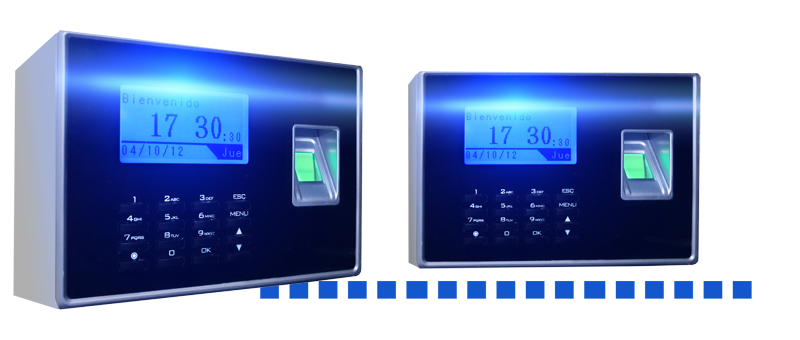

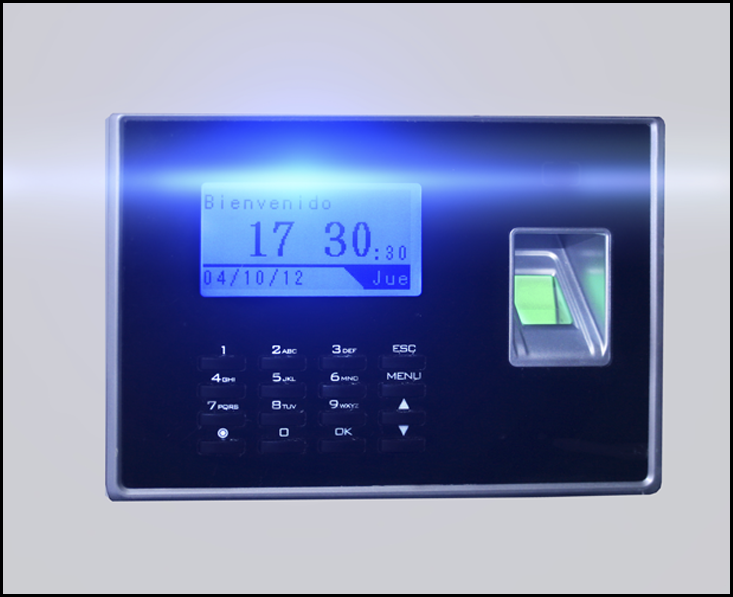

SOLID SECURITY CONTROL
The terminal "SOLID Control" is robust, reliable and economical. Keyboard, biometric fingerprint reader and Contactless card reader (read UID).
 Easy installation
Easy to use
Multilanguage
Full technical support and advice pre and post sales of our company.

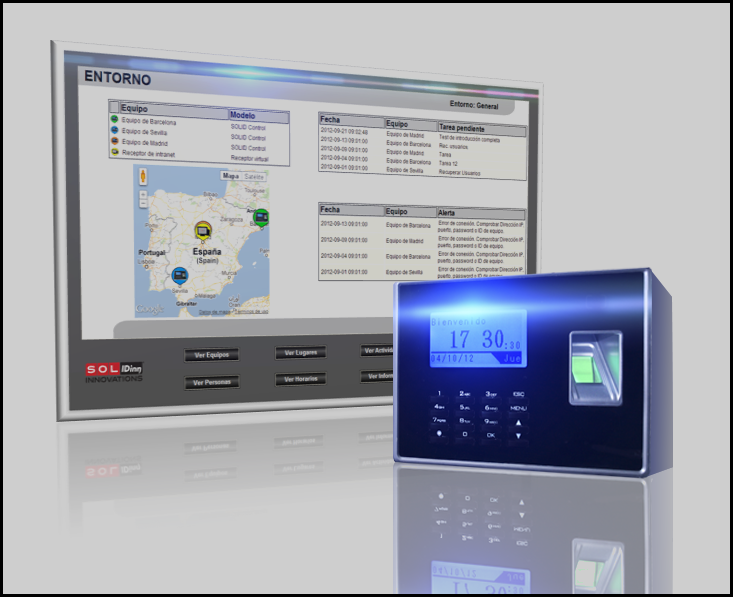

Solid Control software included, developed by our company which allows integration with third party applications and systems.
Allows access control (office, residential, club, etc.), Presence (knowing whether a person is or is not on site), schedule adherence monitoring and reasons for absences (outputs visits, physician, etc..) ... |
|
| Technical Characteristics |
| Self Storage Capacity |
3.000 fingerprint and 80.000 dealings |
| Self Storage Capacity with the software SOLID Control |
Unlimited |
| Verification Mode |
1:1 authentication y 1:N Identification |
| Fingerprint sensor |
High quality optical sensor. |
| Sensor protection |
Protection against scratches and static electricity |
| Comunications |
TCP/IP, USB, RS232C, RS485 & Wiegand 26 bit |
| Optional Comunications |
Proximity card reader 125Khz type EM4102 |
| Card reader |
Card Reader Contactless |
| Identification speed. |
< 2 sec |
| False negative rate |
< 0.01% |
| False positive rate |
< 0.0001% |
| Operating temperature |
0-50ºC; moisture: 20%-80% |
| Auxiliary battery |
7200 mAh, added |
| Keyboard and screen |
128 x 64 LCD; with retro lighting and keyboard with 16 keys |
| Incidents |
16 programmable incidents |
| Relay output. |
1 (door control and alarm) |
| Power |
9 V DC - consumption in operation 400 mA |
| Dimensions |
180mm. (Width) x 137mm. (Tall) x 50mm (Large) |
|
 |

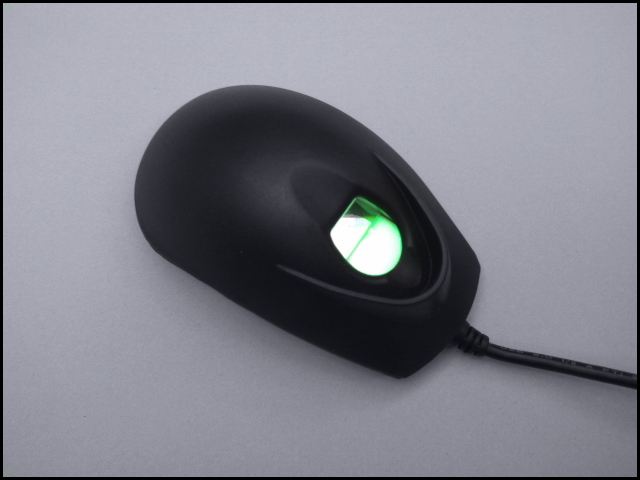

Biometric "solid control" to register users on a PC. It shares the same terminal biometric reader. |
 |

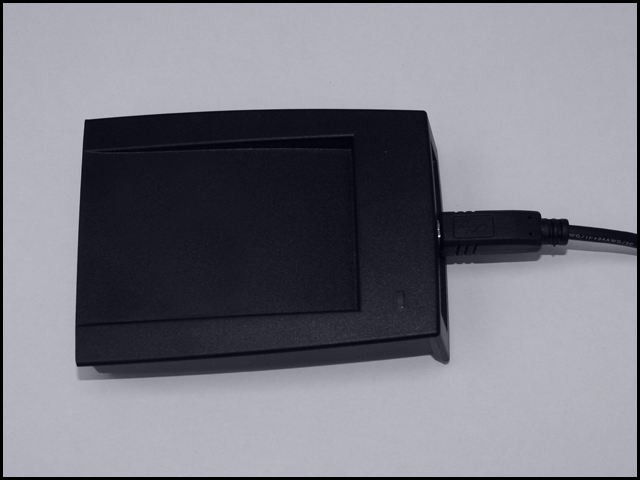

Wedge Contactless reader, reading UID |
|
|
|
|
|
